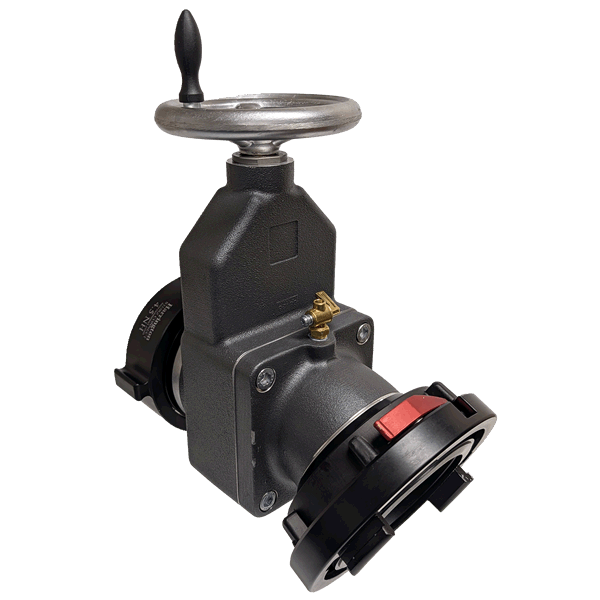

H811- 25° Elbow 4” Gate Valves

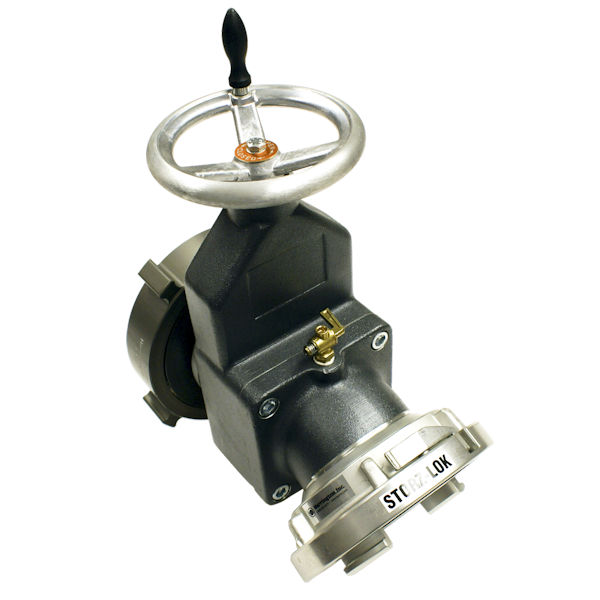

This LDH hydrant gate valve has the following features: slow open/close, a 25 degree elbow, and low friction loss due to a high flow waterway design. The light weight gate valve has a non rising stem, an air bleeder valve, an anodized gate, and a stainless steel spindle. Choose from a variety of sizes of Storz or NST connections.

Friction Loss at 1000 GPM: 0.8 PSI.

PRINT a Product Manual

Add a screen:
HSAS-40 Stainless Steel Screen for 4” Storz $52.00
HSAS-50 Stainless Steel Screen for 5” Storz $68.00
HSAS-60 Stainless Steel Screen for 6” Storz $72.00

Add a Storz Cap to your order. See pricing below.

Description

Note:  These valves are also available with Flange connections, call or e-mail specific information: Size of flange and if need flat face or raised face flange

Part Number Description Spec Sheet LIST

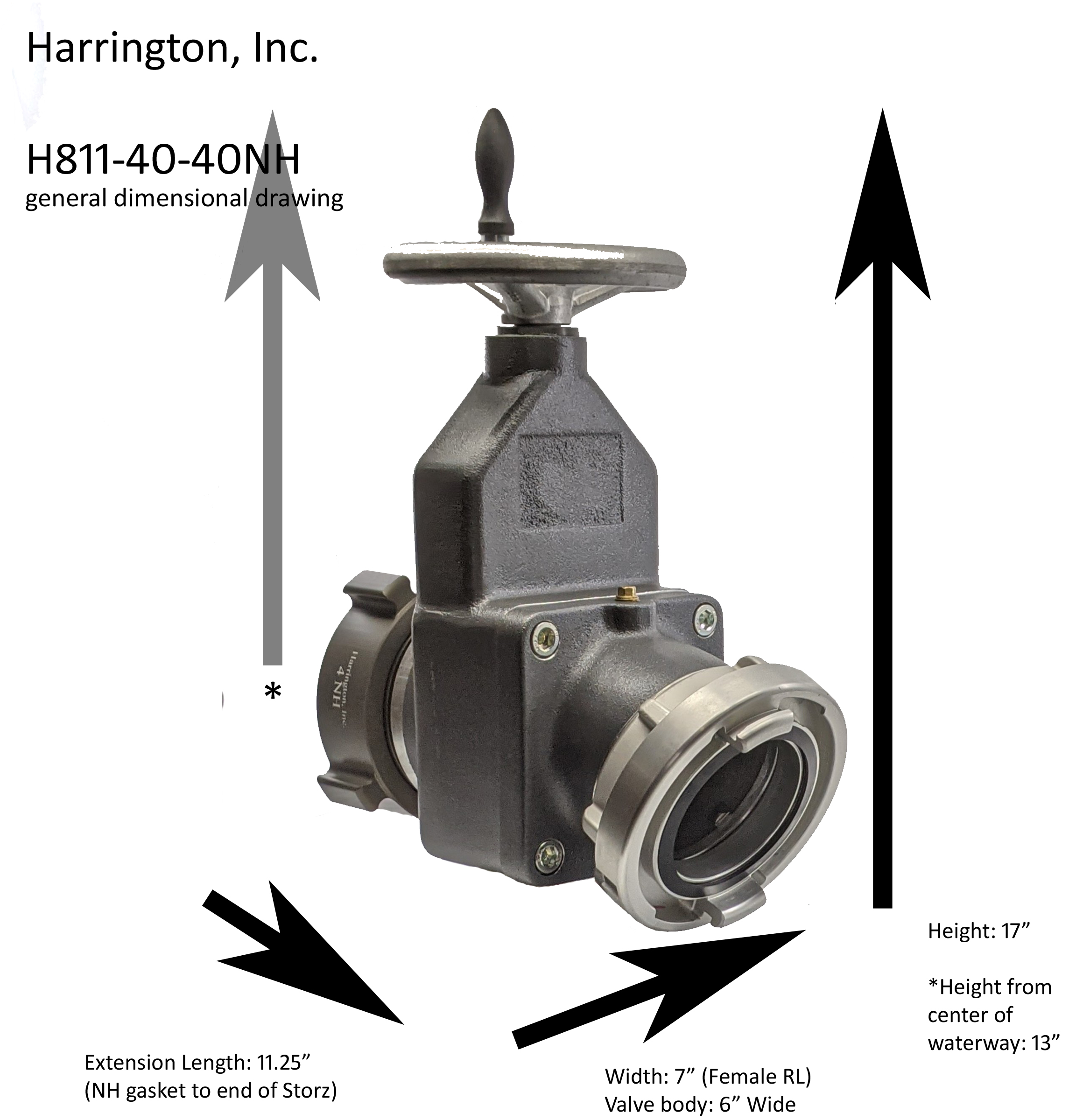

H811-40-40NH Gate valve 4″ w/ 25° elbow 4″ NH female swivel rocker lug inlet x 4″ Storz lock outlet $1,766.00
H811-40-40NHLH Gate valve 4″ w/ 25° elbow 4″ NH female swivel long handle inlet x 4″ Storz lock outlet $1,787.00
H811-40-40NPSH Gate valve 4″ w/ 25° elbow 4″ NPSH female swivel rocker lug inlet x 4″ Storz lock outlet $1,766.00
H811-40-40ST Gate valve 4″ w/ 25° elbow 4″ Storz lock inlet x 4″ Storz lock outlet $1,955.00
H811-40NHM-40NH Gate valve 4″ w/ 25° elbow 4″ NH female swivel rocker lug inlet x 4″ NH male outlet $1,715.00
H811-40NHM-40NPSH Gate valve 4″ w/ 25° elbow 4″ NPSH female swivel rocker lug inlet x 4″ NH male outlet $1,715.00
H811-40-45NH Gate valve 4″ w/ 25° elbow 4.5″ NH female swivel rocker lug inlet x 4″ Storz lock outlet $1,766.00
H811-40-45NHLH Gate valve 4″ w/ 25° elbow 4.5″ NH female swivel long handle inlet x 4″ Storz lock outlet $1,781.00
H811-40-50NH Gate valve 4″ w/ 25° elbow 5″ NH female swivel rocker lug inlet x 4″ Storz lock outlet $1,827.00
H811-40-50NHLH Gate valve 4″ w/ 25° elbow 5″ NH female swivel long handle inlet x 4″ Storz lock outlet $1,827.00
H811-40-50NPSH Gate valve 4″ w/ 25° elbow 5″ NPSH female swivel rocker lug inlet x 4″ Storz lock outlet $1,827.00
H811-40-60NH Gate valve 4″ w/ 25° elbow 6″ NH female swivel rocker lug inlet x 4″ Storz lock outlet $2,190.00
H811-40-60NHLH Gate valve 4″ w/ 25° elbow 6″ NH female swivel long handle inlet x 4″ Storz lock outlet $2,190.00
H811-45NHM-45NH Gate valve 4″ w/ 25° elbow 4.5″ NH female swivel rocker lug inlet x 4.5″ NH male outlet $1,720.00
H811-50-40NH Gate valve 4″ w/ 25° elbow 4″ NH female swivel rocker lug inlet x 5″ Storz lock outlet $1,912.00
H811-50-40NHLH Gate valve 4″ w/ 25° elbow 4″ NH female swivel long handle inlet x 5″ Storz lock outlet $1,933.00
H811-50-45NH Gate valve 4″ w/ 25° elbow 4.5″ NH female swivel rocker lug inlet x 5″ Storz lock outlet $1,911.00
H811-50-45NHLH Gate valve 4″ w/ 25° elbow 4.5″ NH female swivel long handle inlet x 5″ Storz lock outlet $1,927.00
H811-50-50NH Gate valve 4″ w/ 25° elbow 5″ NH female swivel rocker lug inlet x 5″ Storz lock outlet $1,972.00
H811-50-50NHLH Gate valve 4″ w/ 25° elbow 5″ NH female swivel long handle inlet x 5″ Storz lock outlet $1,972.00
H811-50-50NPSH Gate valve 4″ w/ 25° elbow 5″ NPSH female swivel rocker lug inlet x 5″ Storz lock outlet $1,972.00
H811-50-50NPSHLH Gate valve 4” w/ 25° elbow 5” NH female swivel long handle inlet x 5” Storz lock outlet $1,972.00
H811-50-50ST Gate valve 4″ w/ 25° elbow 5″ Storz lock inlet x 5″ Storz lock outlet $1,958.00
H811-50NHM-50NH Gate valve 4″ w/ 25° elbow 5″ NH female swivel rocker lug inlet x 5″ NH male outlet $1,774.00
H811-50-60NH Gate valve 4″ w/ 25° elbow 6″ NH female swivel rocker lug inlet x 5″ Storz lock outlet $2,054.00
H811-50-60NHLH Gate valve 4” w/ 25° elbow 6” NH female swivel long handle inlet x 5” Storz lock outlet $2,054.00
H811-50-60NPSH Gate valve 4″ w/ 25° elbow 6″ NPSH female swivel rocker lug inlet x 5″ Storz lock outlet $2,054.00
H811-50-60NPSHLH Gate valve 4” w/ 25° elbow 6” NH female swivel long handle inlet x 5” Storz lock outlet $2,054.00
H811-60NHM-60NH Gate valve 4″ w/ 25° elbow 6″ NH female swivel rocker lug inlet x 6″ NH male outlet $1,937.00
Available Storz Caps
HBC-40 4″ Blind Cap $146.00
HBC-50 5″ Blind Cap $169.00
