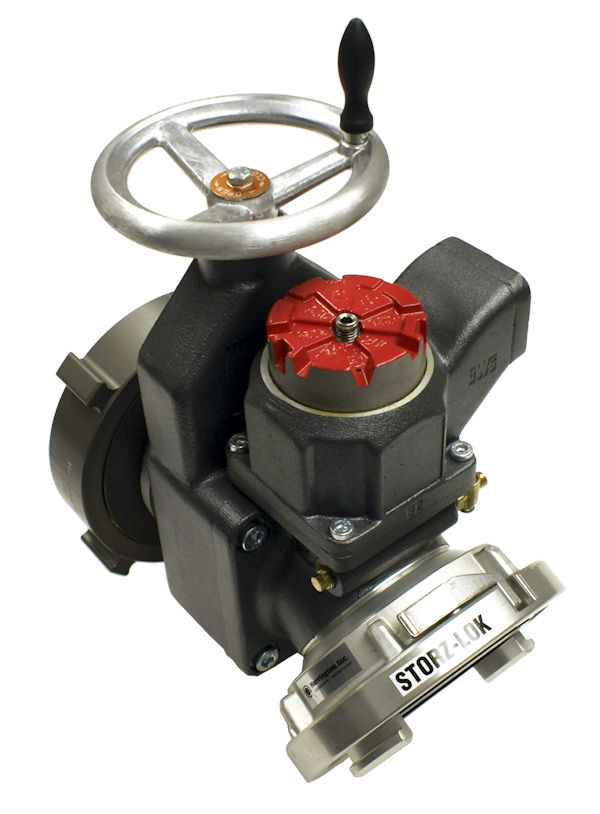

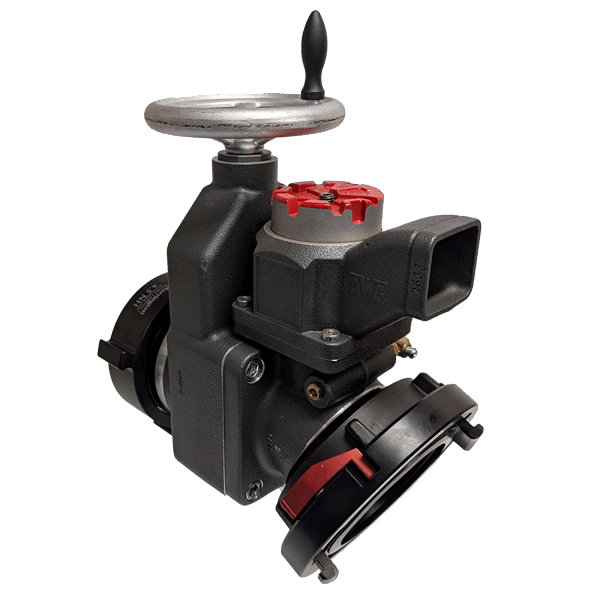

This LDH hydrant gate valve has the following features: slow open/close, a 25 degree elbow, and low friction loss due to a high flow waterway design.
The light weight gate valve has a non rising stem, an air bleeder valve, a field adjustable pressure relief valve, an anodized gate, and a stainless steel spindle. Choose from a variety of sizes of Storz or NST connections.
Dimensions: Extension: 12.5″ Width: 7″ Height: 15″ Weight: 24 lbs
Friction Loss at 1000 GPM: 0.8 PSI.
Note: the H800 Series is available with a flange on the intake. Please contact us directly for pricing information.
Pump Intake Valves
PRINT a manual
PRINT a Product Data Sheet
Add a screen:
HSAS-40 Stainless Steel Screen for 4” Storz $52.00
HSAS-50 Stainless Steel Screen for 5” Storz $68.00
HSAS-60 Stainless Steel Screen for 6” Storz $72.00
Add a Storz Cap to your order. See pricing below.
Description
Note: These valves are also available with Flange connections, call or e-mail specific information: Size of flange and if need flat face or raised face flange
| Part Number | Description | LIST |
| H810-40-40NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 4″ Storz-Lok Outlet x 4″ NH female swivel rocker lug Hydrant Connection | $2,258.00 |
| H810-40-40NHLH | Gate valve 4” w/ 25° elbow w/ 250-S RV 4” Storz-Lok inlet x 4” NH female swivel long handle outlet | $2,271.00 |
| H810-40-40NPSH | Gate valve 4” w/ 25° elbow w/ 250-S RV 4” Storz-Lok inlet x 4” NPSH female swivel rocker lug outlet | $2,258.00 |
| H810-40-40ST | Gate valve 4″ w/ 25° elbow w/ 250-S RV 4″ Storz-Lok Outlet x 4″ Storz-Lok Hydrant Connection | $2,429.00 |
| H810-40NHM-40NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 4″ NH male Outlet x 4″ NH female swivel rocker lug Hydrant Connection | $2,281.00 |
| H810-40NHM-40NPSH | Gate valve 4” w/ 25° elbow w/ 250-S RV 4” NH Female Rocker Lug x 4” NPSH Male rocker lug outlet | $2,281.00 |
| H810-40-45NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 4″ Storz-Lok Outlet x 4.5″ NH female swivel rocker lug Hydrant Connection | $2,251.00 |
| H810-40-45NHLH | Gate valve 4” w/ 25° elbow w/ 250-S RV 4” Storz-Lok inlet x 4.5” NH female swivel long handle outlet | $2,266.00 |
| H810-40-50NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 4″ Storz-Lok Outlet x 5″ NH female swivel rocker lug Hydrant Connection | $2,308.00 |
| H810-40-50NHLH | Gate valve 4” w/ 25° elbow w/ 250-S RV 4” Storz-Lok inlet x 5” NH female swivel long handle outlet | $2,308.00 |
| H810-40-60NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 4″ Storz-Lok Outlet x 6″ NH female swivel rocker lug Hydrant Connection | $2,385.00 |
| H810-40-60NHLH | Gate valve 4” w/ 25° elbow w/ 250-S RV 4” Storz-Lok inlet x 6” NH female swivel long handle outlet | $2,385.00 |
| H810-45NHM-45NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 4.5″ NH male Outlet x 4.5″ NH female swivel rocker lug Hydrant Connection | $2,209.00 |
| H810-50-40NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 5″ Storz-Lok Outlet x 4″ NH female swivel rocker lug Hydrant Connection | $2,411.00 |
| H810-50-40NHLH | Gate valve 4” w/ 25° elbow w/ 250-S RV 5” Storz-Lok inlet x 4” NH female swivel long handle outlet | $2,426.00 |
| H810-50-40NPSH | Gate valve 4” w/ 25° elbow w/ 250-S RV 5” Storz-Lok inlet x 4” NPSH female swivel rocker lug outlet | $2,411.00 |
| H810-50-40NPSHLH | Gate valve 4” w/ 25° elbow w/ 250-S RV 5” Storz-Lok inlet x 4” NPSH female swivel long handle outlet | $2,426.00 |
| H810-50-45NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 5″ Storz-Lok Outlet x 4.5″ NH female swivel rocker lug Hydrant Connection | $2,400.00 |
| H810-50-45NHLH | Gate valve 4” w/ 25° elbow w/ 250-S RV 5” Storz-Lok inlet x 4.5” NH female swivel long handle outlet | $2,418.00 |
| H810-50-50NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 5″ Storz-Lok Outlet x 5″ NH female swivel rocker lug Hydrant Connection | $2,460.00 |
| H810-50-50NHLH | Gate valve 4” w/ 25° elbow w/ 250-S RV 5” Storz-Lok inlet x 5” NH female swivel long handle outlet | $2,460.00 |
| H810-50-50NPSH | Gate valve 4” w/ 25° elbow w/ 250-S RV 5” Storz-Lok inlet x 5” NPSH female swivel rocker lug outlet | $2,460.00 |
| H810-50-50NPSHLH | Gate valve 4” w/ 25° elbow w/ 250-S RV 5” Storz-Lok inlet x 5” NPSH female swivel long handle outlet | $2,460.00 |
| H810-50-50ST | Gate valve 4″ w/ 25° elbow w/ 250-S RV 5″ Storz-Lok Outlet x 5″ Storz-Lok Hydrant Connection | $2,493.00 |
| H810-50NHM-50NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 5″ NH male Outlet x 5″ NH female swivel rocker lug Hydrant Connection | $2,268.00 |
| H810-50NHM-50NHLH | Gate valve 4” w/ 25° elbow w/ 250-S RV 5” NH Female Rocker Lug x 5” NH Male long handle outlet | $2,268.00 |
| H810-50-60NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 5″ Storz-Lok Outlet x 6″ NH female swivel rocker lug Hydrant Connection | $2,537.00 |
| H810-50-60NHLH | Gate valve 4” w/ 25° elbow w/ 250-S RV 5” Storz-Lok inlet x 6” NH female swivel long handle outlet | $2,537.00 |
| H810-50-60NPSH | Gate valve 4” w/ 25° elbow w/ 250-S RV 5” Storz-Lok inlet x 6” NPSH female swivel rocker lug outlet | $2,537.00 |
| H810-60-60NH | Gate valve 4” w/ 25° elbow w/ 250-S RV 6” Storz-Lok inlet x 6” NH female swivel rocker lug outlet | $2,585.00 |
| H810-60-60NPSH | Gate valve 4” w/ 25° elbow w/ 250-S RV 6” Storz-Lok inlet x 6” NPSH female swivel rocker lug outlet | $2,585.00 |
| H810-60NHFS-60NH | Gate valve 4” w/ 25° elbow w/ 250-S RV 6” NH female swivel rocker lug inlet x 6” NH female swivel rocker lug outlet | $2,517.00 |
| H810-60NHM-60NH | Gate valve 4″ w/ 25° elbow w/ 250-S RV 6″ NH male Outlet x 6″ NH female swivel rocker lug Hydrant Connection | $2,410.00 |
| Available Storz Caps | ||
| HBC-40 | 4″ Blind Cap | $146.00 |
| HBC-50 | 5″ Blind Cap | $169.00 |
