H301- 3-Way Manifolds

Distributor Ball Valves

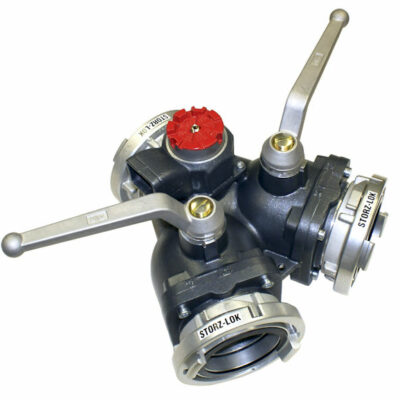

Light weight, 3 way LDH manifold, feeds two smaller lines from one LDH line and also has one straight through LDH outlet. The balls are hard anodized with stainless steel tappets for corrosion resistance. The manifold has an adjustable pressure relief valve and a liquid filled pressure gauge. Specify the size of Storz or NST connections.

Dimensions: L: 16” W: 16” H: 13”
Weight: 40 lbs

PRINT a Product Manual

SKU: H301 - MANIFOLDS Categories: , ,

Description

Part Number Description LIST
H301-40-40-25BIF 3-way Manifold 4” Storz-Lok inlet x (1) 4” Storz-Lok outlet x (2) 2.5”
BI female outlets w/ 250-S RV (LDH Manifold)
$3,108.00
H301-40-40-25BIM 3-way Manifold 4” Storz-Lok inlet x (1) 4” Storz-Lok outlet x (2) 2.5”
BI male outlets w/ 250-S RV (LDH Manifold)
$2,997.00
H301-40-40-25NH 3-way Manifold 4” Storz-Lok inlet x (1) 4” Storz-Lok outlet x (2) 2.5”
NH male outlets w/ 250-S RV (LDH Manifold)
$2,973.00
H301-40-40-25QST 3-way Manifold 4” Storz-Lok inlet x (1) 4” Storz-Lok outlet x (2) 2.5”
QST male outlets w/ 250-S RV (LDH Manifold)
$2,973.00
H301-40NH-40NH-25NH 3-way Manifold 4” NH female swivel inlet x (1) 4” NH male outlet x (2) 2.5”
NH male outlets w/ 250-S RV (LDH Manifold)
$2,899.00
H301-40NH-40NH-25QST 3-way Manifold 4” NH female swivel inlet x (1) 4” NH male outlet x (2) 2.5”
QST male outlets w/ 250-S RV (LDH Manifold)
$2,899.00
H301-40-40-25NHFS 3-way Manifold 4” NH female swivel inlet x (1) 4” NH male outlet x (2) 2.5”
NH female swivel outlets w/ 250-S RV (LDH Manifold)
$3,104.00
H301-45NH-40-25NH 3-way Manifold 4.5” NH female swivel inlet x (1) 4” Storz outlet x (2) 2.5”
NH male outlets w/ 250-S RV (LDH Manifold)
$2,968.00
H301-45NH-45NH-25NH 3-way Manifold 4.5” NH female swivel inlet x (1) 4.5” NH male outlet x (2) 2.5”
NH male outlets w/ 250-S RV (LDH Manifold)
$2,900.00
H301-50-40-25NH 3-way Manifold 5” Storz-Lok inlet x (1) 4” Storz-Lok outlet x (2) 2.5”
NH male outlets w/ 250-S RV (LDH Manifold)
$2,892.00
H301-50-40-25NHFS 3-way Manifold 5” Storz-Lok inlet x (1) 4” Storz-Lok outlet x (2) 2.5” NH female
swivel outlets w/ 250-S RV (LDH Manifold)
$3,026.00
H301-50-50-25BIF 3-way Manifold 5” Storz-Lok inlet x (1) 5” Storz-Lok outlet (2) 2.5” BI female
outlets w/ 250-S RV (LDH Manifold)
$3,466.00
H301-50-50-25BIM 3-way Manifold 5” Storz-Lok inlet x (1) 5” Storz-Lok outlet (2) 2.5”
BI male outlets w/ 250-S RV (LDH Manifold)
$3,347.00
H301-50-50-25NH 3-way Manifold 5” Storz-Lok inlet x (1) 5” Storz-Lok outlet (2) 2.5”
NH male outlets w/ 250-S RV (LDH Manifold)
$3,037.00
H301-50-50-25NH/FTS 3-way Manifold 5” Storz-Lok FTS inlet x (1) 5” Storz-Lok outlet (2) 2.5”
NH male outlets w/ 250-S RV (LDH Manifold)
$3,237.00
H301-50-50-25QST 3-way Manifold 5” Storz-Lok inlet x (1) 5” Storz-Lok outlet (2) 2.5” QST male
outlets w/ 250-S RV (LDH Manifold)
$3,037.00
H301-50-50-25QST/FTS 3-way Manifold 5” Storz-Lok full time swivel inlet x (1) 5” Storz-Lok outlet (2) 2.5”
QST male outlets w/ 250-S RV (LDH Manifold)
$3,237.00
H301-50-50-25ST 3-way Manifold 5” Storz-Lok inlet x (1) 5” Storz-Lok outlet (2) 2.5” Storz outlets w/
250-S RV (LDH Manifold)
$3,106.00
H301-50-50-30ST 3-way Manifold 5” Storz-Lok inlet x (1) 5” Storz-Lok outlet (2) 3” Storz outlets w/
250-S RV (LDH Manifold)
$3,096.00
H301-60-60-25NH 3-way Manifold 6” Storz-Lok inlet x (1) 6” Storz-Lok outlet (2) 2.5” NH male outlets
w/ 250-S RV (LDH Manifold)
$3,264.00
H301-60-60-25BIF 3-way Manifold 6” Storz-Lok inlet x (1) 5” Storz-Lok outlet (2) 2.5” BI female
outlets w/ 250-S RV (LDH Manifold)
$3,400.00
H301-60-60-25BIM 3-way Manifold 6” Storz-Lok inlet x (1) 5” Storz-Lok outlet (2) 2.5” BI male outlets
w/ 250-S RV (LDH Manifold)
$3,289.00
H301-60NHFS-60NHM-25NH 3-way Manifold 6” NH female swivel inlet x (1) 6” NH male outlet x (2) 2.5” NH
male outlets w/ 250-S RV (LDH Manifold)
$3,089.00
H301-60NH-60NHM-25NHFS 3-way Manifold 6” NH female swivel inlet x (1) 6” NH male outlet x (2) 2.5” NH
female outlets w/ 250-S RV (LDH Manifold)
$3,209.00
HPG-100-H Harrington 0-300 Glycerine Filled Pressure Gauge $78.00
HPM-M Post Mount for H301 and H400 Manifolds $338.00

FTS- Full Time Swivel
