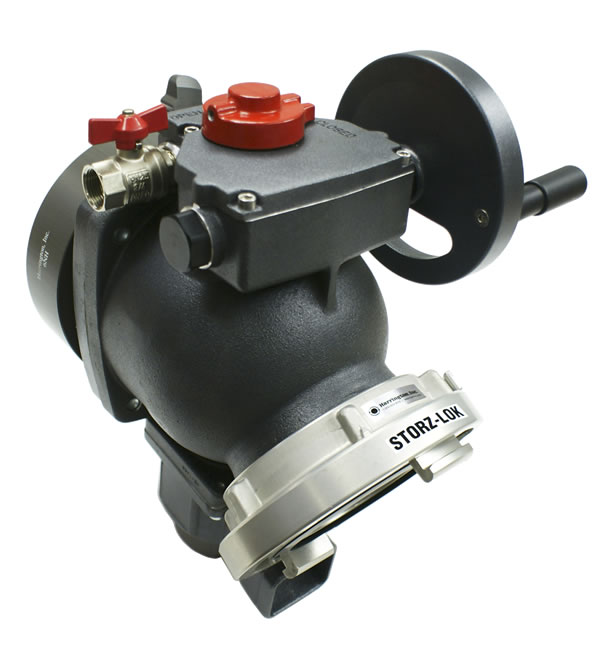

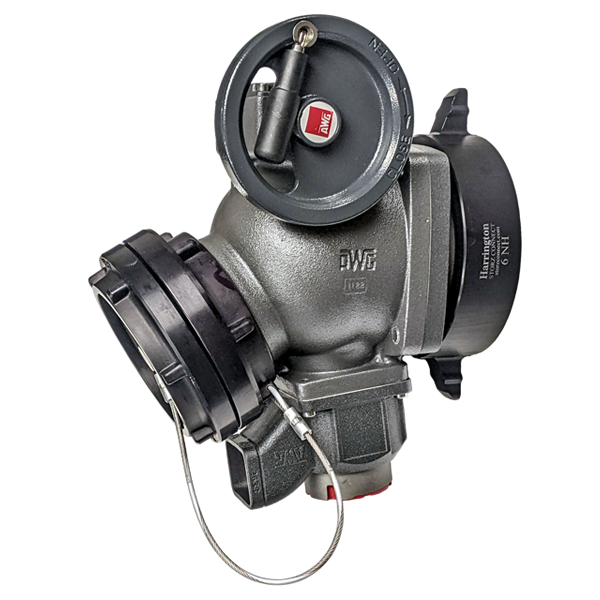

A low profile, 12” depth ball intake valve designed for pumper intake control. Valve meets 900 PSI hydrostatic strength test. Utilizes full flow ball valve design, and has an easy to see visual indicator of ball position.
Includes a 3/4” air bleeder valve, an integrated 30 degree elbow, and a 250 PSI field adjustable pressure relief valve (adjustable in increments of 25 degrees from 75- 250 PSI). Handle can be mounted on right or left side of valve. Choose from a variety of sizes of Storz or NH connections.
Available with male or female swivel in place of Storz
* FTS- Full Time Swivel
Extension 12” x W. 8” x Ht 16”
Wt. 34 lb.
Friction loss at 1000 GPM: 0.1 PSI.
DOWNLOAD an Operating Manual with Safety Information
Warranty: All Harrington, Inc. products are warranted to be free of defects in material and workmanship for a period of one (1) year. H500S and H1000 have a five (5) year corrosion warranty.
Description
| Part Number | Description | Spec Sheet | LIST | |
| H1000-40-45NH | 5" Ball intake valve w/ 30° 4" Storz lock x 4.5" NH female swivel rocker lug w/ 250-S RV | $4,806.00 | ||
| H1000-40-50NH | 5" Ball intake valve w/ 30° 4" Storz lock x 5" NH female swivel rocker lug w/ 250-S RV | $4,750.00 | ||
| H1000-40-60NH | 5" Ball intake valve w/ 30° 4" Storz lock x 6" NH female swivel short handle w/ 250-S RV | $4,756.00 | ||
| H1000-40-60NH/Cap | 5" Ball intake valve w/ 30° 4" Storz lock x 6" NH female swivel short handle w/ 250-S RV with Cap | $4,944.00 | ||
| H1000-40NHFS-60NH | 5" Ball intake valve w/ 30° 4" NH rocker lug female swivel x 6" NH female swivel short handle w/ 250-S RV | $4,694.00 | ||
| H1000-40NHM-60NH | 5" Ball intake valve w/ 30° 4" NH male x 6" NH female swivel short handle w/ 250-S RV | $4,506.00 | ||
| H1000-45NHM-45NH | 5" Ball intake valve w/ 30° 4.5" NH male x 4.5" NH female swivel short handle w/ 250-S RV | $4,706.00 | ||
| H1000-45NHFS-60NH | 5" Ball intake valve w/ 30° 4.5" NH female swivel x 6" NH female swivel short handle w/ 250-S RV | $4,706.00 | ||
| H1000-45NHM-60NH | 5" Ball intake valve w/ 30° 4.5" NH male x 6" NH female swivel short handle w/ 250-S RV | $4,531.00 | ||
| H1000-50-45NH | 5" Ball intake valve w/ 30° 5" Storz lock x 4.5" NH female swivel short handle w/ 250-S RV | $4,738.00 | ||
| H1000-50-45NH/FTS | 5" Ball intake valve w/ 30° 5" Storz lock Full Time Swivel x 4.5" NH female swivel short handle w/ 250-S RV | $5,188.00 | ||
| H1000-50-50NH | 5" Ball intake valve w/ 30° 5" Storz lock x 5" NH female swivel short handle w/ 250-S RV | $4,763.00 | ||
| H1000-50-50NH/FTS | 5" Ball intake valve w/ 30° 5" Storz lock Full Time Swivel x 5" NH female swivel short handle w/ 250-S RV | $5,125.00 | ||
| H1000-50-50NPSH | 5" Ball intake valve w/ 30° 5" Storz lock x 5" NPSH female swivel rocker lug w/ 250-S RV | $4,763.00 | ||
| H1000-50NHFS-50NH | 5" Ball intake valve w/ 30° 5" NH female swivel x 5" NH female swivel short handle w/ 250-S RV | $4,713.00 | ||
| H1000-50NHM-50NH | 5" Ball intake valve w/ 30° 5" NH male x 5" NH female swivel short handleoutlet w/ 250-S RV | $4,531.00 | ||
| H1000-50-60FF/NORV/CAP | 5" Ball intake valve w/ 30° 5" Storz lock x 6" Flat Face Flange w/ Cap and No Relief Valve | DOWNLOAD | $5,013.00 | |
| H1000-50-60NH | 5" Ball intake valve w/ 30° 5" Storz lock x 6" NH female swivel short handle w/ 250-S RV | DOWNLOAD | $4,688.00 | |
| H1000-50-60NH/Cap | 5" Ball intake valve w/ 30° 5" Storz lock x 6" NH female swivel short handle w/ 250-S RV with Cap | $4,931.00 | ||
| H1000-50-60NH/FTS | 5" Ball intake valve w/ 30° 5" Storz lock Full Time Swivel x 6" NH female swivel short handle w/ 250-S RV | $5,125.00 | ||
| H1000-50NHFS-60NH | 5" Ball intake valve w/ 30° 5" NH female swivel x 6" NH female swivel short handle w/ 250-S RV | $4,713.00 | ||
| H1000-50NHM-60NH | 5" Ball intake valve w/ 30° 5" NH male x 6" NH female swivel short handle w/ 250-S RV | $4,531.00 | ||
| H1000-60-45NH | 5" Ball intake valve w/ 30° 6" Storz lock x 4.5" NH female swivel rocker lug w/ 250-S RV | $4,925.00 | ||
| H1000-60-50NH | 5" Ball intake valve w/ 30° 6" Storz lock x 5" NH female swivel rocker lug w/ 250-S RV | $4,925.00 | ||
| H1000-60-60NH | 5" Ball intake valve w/ 30° 6" Storz lock x 6" NH female swivel short handle w/ 250-S RV | $4,925.00 | ||
| H1000-60NHFS-60NH | 5" Ball intake valve w/ 30° 6" NH female swivel x 6" NH female swivel short handle w/ 250-S RV | $4,956.00 | ||
| H1000-60NHM-60NH | 5" Ball intake valve w/ 30° 6" NH male x 6" NH female swivel short handle w/ 250-S RV | 4,550.00 | ||
| H1000-60NHM-60FF/NORV/CAP | 5" Ball intake valve w/ 30° 6" NH male x 6" Flat Face Flange w/ Cap and No Relief Vavle | 5,106.00 | ||
| Available Storz Caps | ||||
| HBC-40 | 4" Storz (100) blind cap with chain Anodized (AWG) | $188.00 | ||
| HBC-50 | 5" Storz (125) blind cap with chain Anodized (AWG) | $244.00 | ||
| HBC-60 | 6" Storz (150) blind cap [(3) lugs] with chain Anodized | $344.00 | ||
Special Threads available on request, cost as follows: Allow 4-5 weeks for special threads.
• All Special Threads = $15.00 net, each
• 1” to 3.5” – NPT Threads = No Charge
• 4″ and up – NPT Threads = $15.00 net, each
