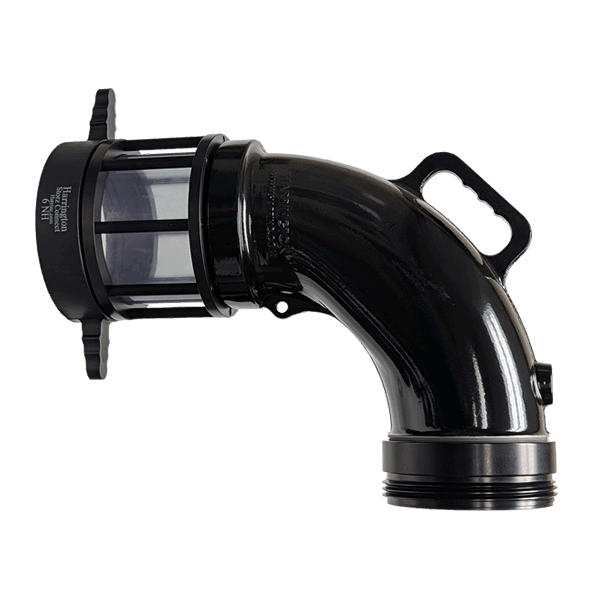

The Harrington Model #HPSE90-degree elbow can be utilized for suction and discharge application for a compact transition from pump to folding tank or secondary pumper. The inlet shall be from 4” to 6” NH female swivel long handle. Rocker lug is available and the discharge shall be 4” to 6” NH male. The valve and all connections are military type III anodized aluminum. The elbow will be cast aluminum and powder coated black. The elbow is rated to 250PSI working pressure and meets and exceeds all NFPA Standards.
DOWNLOAD a flyer
Description
| Part Number | Description | Spec Sheet | LIST |
| HPSE90-50NHM-50NHFSLH | 90° Pressure/Suction Elbow 5" NH Male x 5" NH FS LH | $1,320.00 | |
| HPSE90-50ST-50ST/S | 90° Pressure/Suction Elbow 5” Storz x 5”Storz Swivel | DOWNLOAD | $2,000.00 |
| HPSE90-50ST-60NHFSLH | 90° Pressure/Suction Elbow 5" Storz/Lok x 6" NH FS LH | $1,620.00 | |
| HPSE90-60NHM-50NHFSLH | 90° Pressure/Suction Elbow 6" NH Male x 5" NH FS LH | $1,280.00 | |
| HPSE90-60NHM-60NHFSRL | 90° Pressure/Suction Elbow 6" NH Male x 6" NH FS R/L | $1,350.00 | |
| HPSE90-60NHM-60NHFSLH | 90° Pressure/Suction Elbow 6" NH Male x 6" NH FS LH | DOWNLOAD | $1,350.00 |

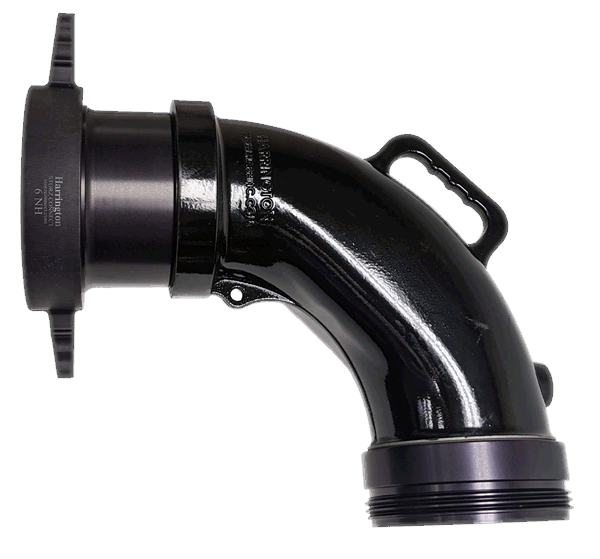

| HPSE90-3-60NHM-60NHFSLH | 90° Pressure/Suction Elbow 6" NH Male x 6" NH FS LH 3" Extension | DOWNLOAD | $1,510.00 |
| HPSE90-6-60NHM-60NHFSLH | 90° Pressure/Suction Elbow 6" NH Male x 6" NH FS LH with 6" Extension | DOWNLOAD | $1,720.00 |
