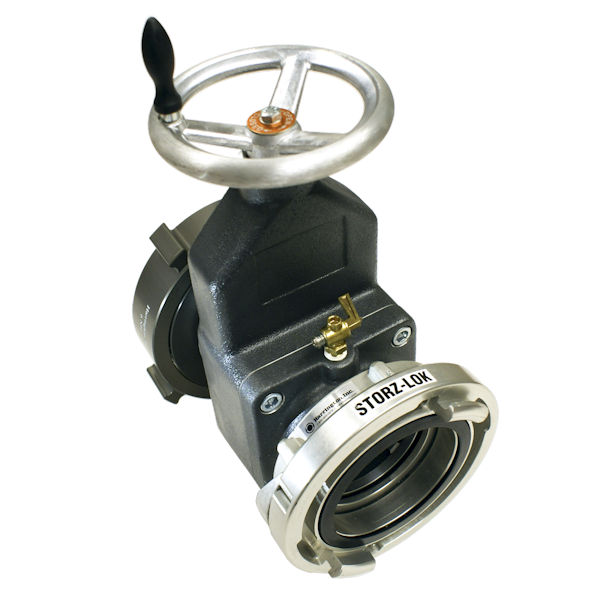

H800- 4” Straight Gate Valves

This LDH hydrant gate valve provides low friction loss due to a high flow design. It is excellent for hydrant discharge control, due to providing a slow open/close mechanism.

The light weight gate valve has an air bleeder valve, a non-rising stem, an anodized gate, and a stainless steel spindle.

Dimensions: H: 14” L: 10” W: 6”
Weight: 21 lbs
Friction loss at 1000 GPM: 0.8 PSI

PRINT a Product Manual

Add a screen:
HSAS-40 Stainless Steel Screen for 4” Storz $52.00
HSAS-50 Stainless Steel Screen for 5” Storz $68.00
HSAS-60 Stainless Steel Screen for 6” Storz $72.00

Add a Storz Cap to your order. See pricing below.

Description

Note:  These valves are also available with Flange connections, call or e-mail specific information: Size of flange and if need flat face or raised face flange

Part NumberDescriptionSpec SheetLIST
H800-40-40NH4” Gate valve straight 4” NH female swivel rocker lug inlet x 4” Storz-Lok outlet$1,554.00
H800-40-40NHLH4” Gate valve straight 4” NH long handle female swivel rocker lug inlet x 4” Storz-Lok outlet$1,567.00
H800-40-40NPSH4” Gate valve straight 4” NPSH female swivel rocker lug inlet x 4” Storz-Lok outlet$1,554.00
H800-40-40NPSHLH4” Gate valve straight 4” NPSH long handle female swivel rocker lug inlet x 4” Storz-Lok outlet$1,567.00
H800-40-40ST4” Gate valve straight 4” Storz-Lok part time swivel rocker lug inlet x 4” Storz-Lok outlet$1,724.00
H800-40NHFS-40NHFS4” Gate valve straight 4” NH female swivel rocker lug inlet x 4” NH female swivel outlet$1,613.00
H800-40NPSHFS-40NPSHFS4” Gate valve straight 4” NPSH female swivel rocker lug inlet x 4” NPSH female swivel outlet$1,613.00
H800-40NHFS-40NPTF4” Gate valve straight 4” NPT female rigid inlet x 4” NPSH female swivel outlet$1,512.00
H800-40NHM-40NH4” Gate valve straight 4” NH female swivel inlet x 4” NH male outlet$1,506.00
H800-40NHM-40NHLH4” Gate valve straight 4” NH female long handle swivel inlet x 4” NH male outlet$1,519.00
H800-40NHM-40NPSH4” Gate valve straight 4” NPSH female swivel inlet x 4” NH male outlet$1,506.00
H800-40NPTM-40NPSHFS4” Gate valve straight 4” NPSH female swivel inlet x 4” NH male outlet$1,512.00
H800-40-45NHGate valve 4″ straight 4.5″ NH female swivel rocker lug Hydrant Connection x 4″ Storz-Lok outlet$1,547.00
H800-40-45NHLH4” Gate valve straight 4.5” NH female long handle swivel inlet x 4” Storz-Lok outlet$1,561.00
H800-40NHM-45NH4” Gate valve straight 4.5” NH female swivel inlet x 4” NH male outlet$1,499.00
H800-40NHM-45NHLH4” Gate valve straight 4.5” NH female long handle swivel inlet x 4” NH male outlet$1,514.00
H800-40-50NHGate valve 4″ straight 5″ NH female swivel rocker lug Hydrant Connection x 4″ Storz-Lok outlet$1,603.00
H800-40-60NHGate valve 4″ straight 6″ NH female swivel rocker lug Hydrant Connection x 4″ Storz-Lok outlet$1,680.00
H800-40-60NHLH4” Gate valve straight 6” NH female long handle swivel inlet x 4” Storz-Lok outlet$1,680.00
H800-40-60NPSH4” Gate valve straight 6” NPSH female swivel rocker lug inlet x 4” Storz-Lok outlet$1,680.00
H800-45NHM-45NHGate valve 4″ straight 4.5″ NH female swivel rocker lug Hydrant Connection x 4.5″ NH male outlet$1,504.00
H800-45NHM-45NHLH4” Gate valve straight 4.5” NH female long handle swivel inlet x 4.5” NH male outlet$1,519.00
H800-50-40NHGate valve 4″ straight 4″ NH female swivel rocker lug Hydrant Connection x 5″ Storz-Lok outlet$1,699.00
H800-50-40NHLH4” Gate valve straight 4” NH female long handle swivel inlet x 5” Storz-Lok outlet$1,709.00
H800-50-45NHGate valve 4″ straight 4.5″ NH female swivel rocker lug Hydrant Connection x 5″ Storz-Lok outlet$1,692.00
H800-50-45NHLH4” Gate valve straight 4.5” NH female long handle swivel inlet x 5” Storz-Lok outlet$1,706.00
H800-50-45NPSH4” Gate valve straight 4.5” NPSH female swivel inlet x 5” Storz-Lok outlet$1,692.00
H800-50-50NHGate valve 4″ straight 5″ NH female swivel rocker lug Hydrant Connection x 5″ Storz-Lok outlet$1,749.00
H800-50-50STGate valve 4″ straight 5″ Storz-Lok Hydrant Connection x 5″ Storz-Lok outlet$1,784.00
H800-50NHM-50NHGate valve 4″ straight 5″ NH female swivel rocker lug Hydrant Connection x 5″ NH male outlet$1,648.00
H800-50-60NHGate valve 4″ straight 6″ NH female swivel rocker lug Hydrant Connection x 5″ Storz-Lok outlet$1,825.00
H800-50-60NHLH4” Gate valve straight 6” NH female long handle swivel inlet x 5” Storz-Lok outlet$1,825.00
H800-50-60NPSH4” Gate valve straight 6” NPSH female swivel rocker lug inlet x 5” Storz-Lok outlet$1,825.00
H800-50-60NPSHLH4” Gate valve straight 6” NPSH female long handle swivel inlet x 5” Storz-Lok outlet$1,825.00
H800-60-60NH4” Gate valve straight 6” NH female swivel rocker lug inlet x 6” Storz-Lok outlet$1,883.00
H800-60-60NHLH4” Gate valve straight 6” NH female long handle swivel inlet x 6” Storz-Lok outlet$1,883.00
H800-60NHM-60NHGate valve 4″ straight 6″ NH female swivel rocker lug Hydrant Connection x 6″ NH male outlet$1,708.00
H800-60NHM-60NHLH4” Gate valve straight 6” NH female long handle swivel inlet x 6” NH male outlet$1,708.00
H800-60NHM-60NPSH4” Gate valve straight 6” NPSH female swivel inlet x 6” NH male outlet$1,708.00
H800-60NHM-60NPSHLH4” Gate valve straight 6” NPSH female long handle swivel inlet x 6” NH male outlet$1,708.00
Available Storz Caps
HBC-404″ Blind Cap$146.00
HBC-505″ Blind Cap$169.00
