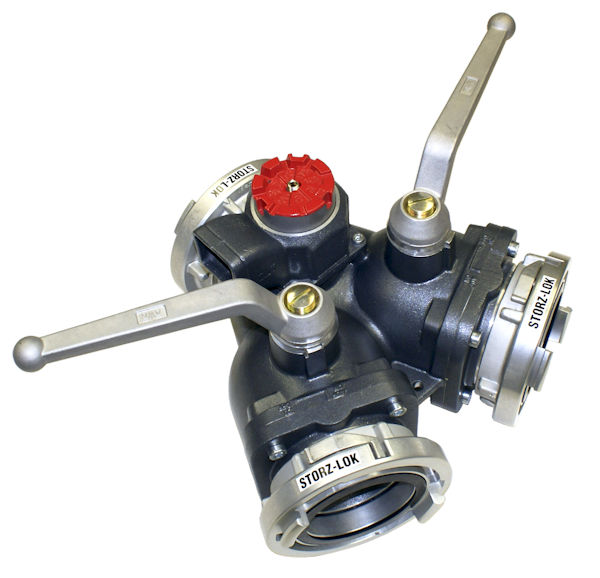

H600- Super Flow 2-Way Ball Valves (Wyes)

Distributor Ball Valves

Large, light-weight 2 way LDH ball valve. Feed two LDH hoses from a single LDH line or one LDH hose from two LDH hoses. The Super Flow ball valve has low friction loss due to a high flow water way design. Hard anodized balls with stainless steel tappets for corrosion resistance. This design permits feed from either direction. Includes adjustable pressure relief valve for added safety. Specify the size of Storz or NST connections.

Dimensions: Length: 18” Width: 16” Height: 12”
Weight: 47 lbs

VIEW a Product Flyer

PRINT a Product Manual

Description

Part Number Description LIST
H600-40-40ST 2-way Superflow ball valve 4” Storz-Lok inlet x (2) 4” Storz-Lok outlets w/ 250-S RV $4,024.00
H600-40NHFS-40NHM 2-way Superflow ball valve 4” NH female swivel inlet x (2) 4” NH male outlets w/
250-S RV
$3,655.00
H600-45NHFS-40NHM 2-way Superflow ball valve 4.5” NH female swivel inlet x (2) 4” NH male outlets w/
250-S RV
$3,660.00
H600-45NHFS-50ST 2-way Superflow ball valve 4.5” NH female swivel inlet x (2) 5” Storz outlets w/ 250-S
RV
$3,842.00
H600-50-40ST 2-way Superflow ball valve 5” Storz-Lok inlet x (2) 4” Storz-Lok outlets w/ 250-S RV $3,943.00
H600-50-50ST 2-way Superflow ball valve 5” Storz-Lok inlet x (2) 5” Storz-Lok outlets w/ 250-S RV $3,633.00
H600-50-50ST/FTS 2-way Superflow ball valve 5” Storz-Lok full time swivel inlet x (2) 5” Storz-Lok
outlets w/ 250-S RV
$4,035.00
H600-50NHFS-50NHM 2-way Superflow ball valve 5” NH female swivel inlet x (2) 5” NH male outlets w/
250-S RV
$3,719.00
H600-60-40ST 2-way Superflow ball valve 6” Storz-Lok inlet x (2) 4” Storz-Lok outlets w/ 250-S RV $4,107.00
H600-60NHFS-40ST 2-way Superflow ball valve 6” NH female swivel inlet x (2) 4” Storz outlets w/ 250-S
RV
$4,112.00
H600-60NPSHFS-40ST 2-way Superflow ball valve 6” NPSH female swivel inlet x (2) 4” Storz outlets w/ 250-
S RV
$4,112.00
H600-60-50ST 2-way ball valve Superflow 6” Storz-Lok inlet x (2) 5” Storz-Lok outlets w/ 250-S RV $3,948.00
H600-60NHFS-50ST 2-way ball valve Superflow 6” NH Female Swivel inlet x (2) 5” Storz-Lok outlets w/
250-S RV
$3,950.00
H600-60NPSHFS-50ST 2-way ball valve Superflow 6” NPSH Female Swivel inlet x (2) 5” Storz-Lok outlets w/
250-S RV
$3,950.00
H600-60-60ST 2-way ball valve Superflow 6” Storz-Lok inlet x (2) 6” Storz-Lok outlets w/ 250-S RV $4,285.00
H600-60NHFS-60NHM 2-way Superflow ball valve 6” NH female swivel inlet x (2) 6” NH male outlets w/
250-S RV
$3,842.00
