FDC Connections | Fire Department Connections

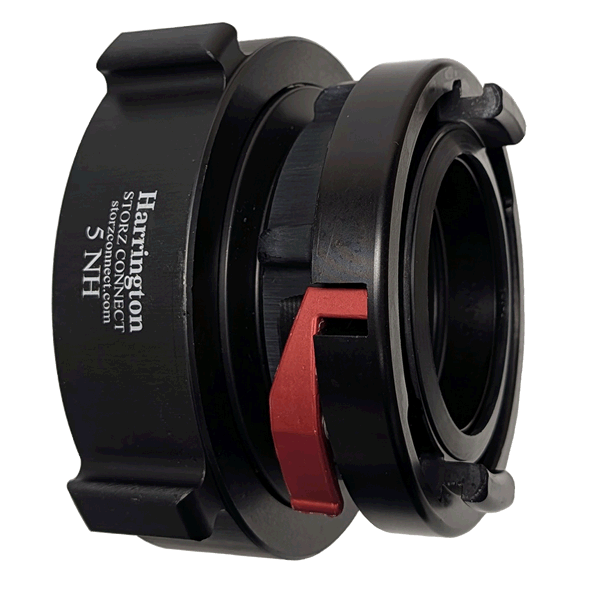

HSFS- Storz Adapters- x Female Swivel Rocker Lug

These Storz adapters are tested to a rated pressure of 250 PSI. “Forged” Storz heads provide maximum strength. No hidden imperfections like those found in cast couplings.

Available 2” to 6”.

All Storz couplings 4” and larger include an All Metal NFPA compliant Storz-Lok.

Description

Part NumberDescriptionSpec SheetLIST
HSFS15-15NHStorz adapter 1.5″ (38) x 1.5″ NH female swivel rocker lug$122.00
HSFS15-25NHStorz adapter 1.5″ (38) x 2.5″ NH female swivel rocker lug$139.00
HSFS20-15NHStorz adapter 2″ (52) x 1.5″ NH female swivel rocker lug$113.00
HSFS25-15NHStorz adapter 2.5″ (52) x 1.5″ NH female swivel rocker lug$161.00
HSFS25-15NPSHStorz adapter 2.5″ (52) x 1.5″ NPSH female swivel rocker lug$161.00
HSFS25-25NHStorz adapter 2.5″ (65) x 2.5″ NH female swivel rocker lug$163.00
HSFS25-25NPSHStorz adapter 2.5″ (65) x 2.5″ NPSH female swivel rocker lug$163.00
HSFS25-30NHStorz adapter 2.5″ (65) x 3″ NH female swivel rocker lug$233.00
HSFS25-30NPSHStorz adapter 2.5″ (65) x 3″ NPSH female swivel rocker lug$233.00
HSFS30-25NHStorz adapter 3″ (75) x 2.5″ NH female swivel rocker lug anodized$157.00
HSFS30-25NPSHStorz adapter 3″ (75) x 2.5″ NPSH female swivel rocker lug anodized$157.00
HSFS30-30NHStorz adapter 3″ (75) x 3″ NH female swivel rocker lug anodized$196.00
HSFS30-30NPSHStorz adapter 3″ (75) x 3″ NPSH female swivel rocker lug anodized$196.00
HSFS40-25NHStorz adapter 4″ (100) with Storz-Lok x 2.5″ NH female swivel rocker lug anodized
Made in USA
$324.00
HSFS40-30NHStorz adapter 4″ (100) with Storz-Lok x 3″ NH female swivel rocker lug anodized
Made in USA
$387.00
HSFS40-30NPSHStorz adapter 4″ (100) with Storz-Lok x 3″ NPSH female swivel rocker lug anodized
Made in USA
$387.00
HSFS40-35NHStorz adapter 4″ (100) with Storz-Lok x 3.5″ NH female swivel rocker lug anodized
Made in USA
$357.00
HSFS40-35NPSHStorz adapter 4″ (100) with Storz-Lok x 3.5″ NPSH female swivel rocker lug anodized
Made in USA
$357.00
HSFS40-40NHStorz adapter 4″ (100) with Storz-Lok x 4″ NH female swivel rocker lug anodized
Made in USA
$439.00
HSFS40-40NPSHStorz adapter 4″ (100) with Storz-Lok x 4″ NPSH female swivel rocker lug anodized
Made in USA
$439.00
HSFS40-45NHStorz adapter 4″ (100) with Storz-Lok x 4.5″ NH female swivel rocker lug anodized
Made in USA
$431.00
HSFS40-50NHStorz adapter 4″ (100) with Storz-Lok x 5″ NH female swivel rocker lug anodized
Made in USA
$492.00
HSFS40-50NPSHStorz adapter 4″ (100) with Storz-Lok x 5″ NPSH female swivel rocker lug anodized
Made in USA
$492.00
HSFS40-60NHStorz adapter 4″ (100) with Storz-Lok x 6″ NH female swivel rocker lug anodized
Made in USA
$574.00
HSFS40-60NPSHStorz adapter 4″ (100) with Storz-Lok x 6″ NPSH female swivel rocker lug anodized
Made in USA
$574.00
HSFS50-25NHStorz adapter 5″ (125) with Storz-Lok x 2.5″ NH female swivel rocker lug anodized
Made in USA
$396.00
HSFS50-25NH/FTSStorz adapter 5″ (125) with Storz-Lok full time swivel x 2.5″ NH female swivel rocker lug anodized
Made in USA
$669.00
HSFS50-25NPSHStorz adapter 5″ (125) with Storz-Lok x 2.5″ NPSH female swivel rocker lug anodized
Made in USA
$396.00
HSFS50-30NHStorz adapter 5″ (125) with Storz-Lok x 3″ NH female swivel rocker lug anodized
Made in USA
$441.00
HSFS50-30NPSHStorz adapter 5″ (125) with Storz-Lok x 3″ NPSH female swivel rocker lug anodized
Made in USA
$441.00
HSFS50-30NH/FTSStorz adapter 5″ (125) with Storz-Lok full time swivel x 3″ NH female swivel rocker lug anodized
Made in USA
$714.00
HSFS50-35NHStorz adapter 5″ (125) with Storz-Lok x 3.5″ NH female swivel rocker lug anodized
Made in USA
$425.00
HSFS50-35NPSHStorz adapter 5″ (125) with Storz-Lok x 3.5″ NPSH female swivel rocker lug anodized
Made in USA
$425.00
HSFS50-35NH/FTSStorz adapter 5″ (125) with Storz-Lok full time swivel x 3.5″ NH female swivel rocker lug anodized
Made in USA
$692.00
HSFS50-40NHStorz adapter 5″ (125) with Storz-Lok x 4″ NH female swivel rocker lug anodized
Made in USA
$489.00
HSFS50-40NPSHStorz adapter 5″ (125) with Storz-Lok x 4″ NPSH female swivel rocker lug anodized
Made in USA
$489.00

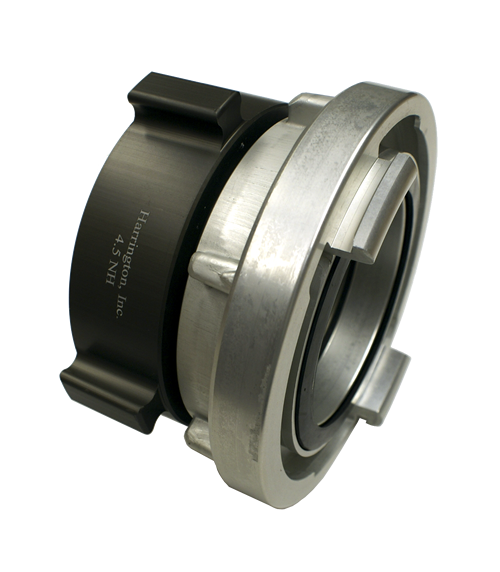

HSFS50-45NHStorz adapter 5″ (125) with Storz-Lok x 4.5″ NH female swivel rocker lug anodized
Made in USA
$454.00
HSFS50-50NHStorz adapter 5″ (125) with Storz-Lok x 5″ NH female swivel rocker lug anodized
Made in USA
$520.00
HSFS50-50NPSHStorz adapter 5″ (125) with Storz-Lok x 5″ NPSH female swivel rocker lug anodized
Made in USA
$520.00
HSFS50-60NHStorz adapter 5″ (125) with Storz-Lok x 6″ NH female swivel rocker lug anodized
Made in USA
$632.00
HSFS50-60NPSHStorz adapter 5″ (125) with Storz-Lok x 6″ NPSH female swivel rocker lug anodized
Made in USA
$632.00
HSFS60-40NHStorz adapter 6″ (150) with Storz-Lok x 4″ NH female swivel rocker lug anodized$630.00
HSFS60-40NPSHStorz adapter 6″ (150) with Storz-Lok x 4″ NPSH female swivel rocker lug anodized$630.00
HSFS60-45NHStorz adapter 6″ (150) with Storz-Lok x 4.5″ NH female swivel rocker lug anodized$583.00
HSFS60-50NHStorz adapter 6″ (150) with Storz-Lok x 5″ NH female swivel rocker lug anodized$684.00
HSFS60-50NPSHStorz adapter 6″ (150) with Storz-Lok x 5″ NPSH female swivel rocker lug anodized$684.00
HSFS60-60NHStorz adapter 6″ (150) with Storz-Lok x 6″ NH female swivel rocker lug anodized$675.00
HSFS60-60NPSHStorz adapter 6″ (150) with Storz-Lok x 6″ NPSH female swivel rocker lug anodized$675.00

Special Threads available on request, cost as follows: Allow 4-5 weeks for special threads.
• All Special Threads = $15.00 net, each
• 1” to 3.5” – NPT Threads = No Charge
• 4″ and up – NPT Threads = $15.00 net, each
