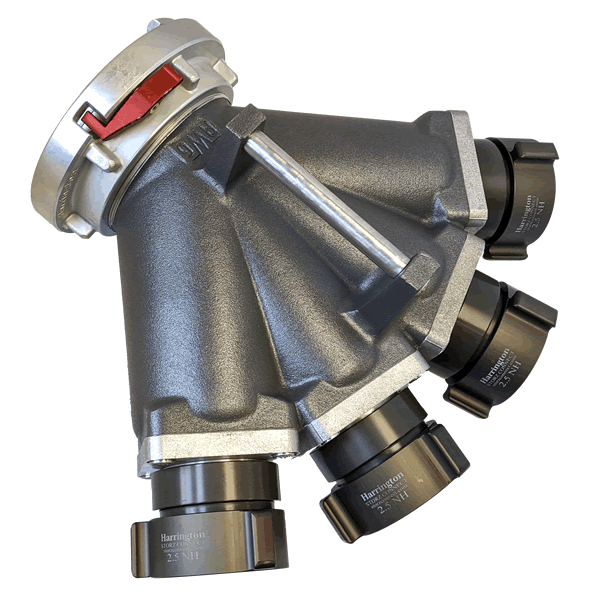

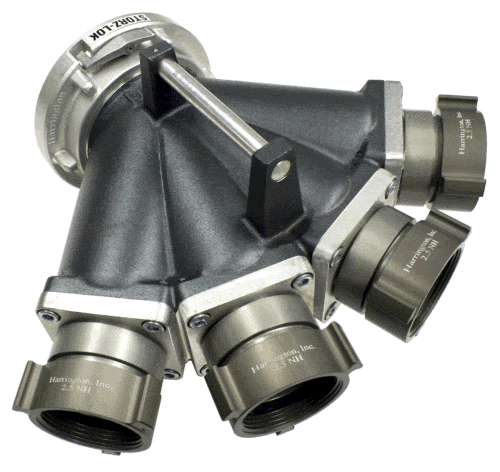

H440- 4-Way Siamese Valve

Siamese Valves

Light weight anodized corrosion resistance all metal construction the 4 way Clappered Siamese is used for supplying one LDH line from up to four smaller lines. Each inlet is Clappered individually and can be fed individually or from all four smaller lines. Features stainless steel clapper assemblies “forged” Storz heads, and stainless steel balls in swivel races.

Includes a carrying handle. Specify the size of Storz or NST connections.

Dimensions: Length: 15” Width: 19” Height: 9”
Weight: 15 lbs

PRINT a Product Manual

Description

Part Number Description LIST
H440-40-25BIM 4-way siamese clappered (4) 2.5” BI male inlet x 4” Storz-Lok outlet $1,542.00
H440-40-25NH 4-way siamese clappered (4) 2.5″ NH female swivel rocker lug inlet x 4″ Storz-Lok outlet $1,796.00
H440-40-25QST 4-way siamese clappered (4) 2.5” QST female swivel rocker lug inlet x 4” Storz-Lok outlet $1,793.00
H440-40-25ST 4-way siamese clappered (4) 2.5” Storz inlet x 4” Storz-Lok outlet $1,533.00
H440-40-30ST 4-way siamese clappered (4) 3” Storz inlet x 4” Storz-Lok outlet $1,512.00
H440-45-25ST 4-way siamese clappered (4) 2.5” Storz inlet x 110 Storz-Lok outlet $1,516.00
H440-45-30ST 4-way siamese clappered (4) 3” Storz inlet x 110 Storz-Lok outlet $1,494.00
H440-50-25NH 4-way siamese clappered (4) 2.5″ NH female swivel rocker lug inlet x 5″ Storz-Lok outlet $1,715.00
H440-50-25NPSH 4-way siamese clappered (4) 2.5” NPSH female swivel rocker lug inlet x 5” Storz-Lok outlet $1,715.00
H440-50-25QST 4-way siamese clappered (4) 2.5” QST female swivel rocker lug inlet x 5” Storz-Lok outlet $1,715.00
H440-50-25BIM 4-way siamese clappered (4) 2.5” BI male inlet x 5” Storz-Lok outlet $1,488.00
H440-50-25ST 4-way siamese clappered (4) 2.5” Storz inlet x 5” Storz-Lok outlet $1,452.00
H440-50-30ST 4-way siamese clappered (4) 3” Storz inlet x 5” Storz-Lok outlet $1,431.00
H440-60-25BIM 4-way siamese clappered (4) 2.5” BI male inlet x 6” Storz-Lok outlet $1,629.00
H440-60-25NH 4-way siamese clappered (4) 2.5″ NH female swivel rocker lug inlet x 6″ Storz-Lok outlet $1,883.00
H440-60-25ST 4-way siamese clappered (4) 2.5” Storz inlet x 6” Storz-Lok outlet $1,620.00
H440-60-30ST 4-way siamese clappered (4) 3” Storz inlet x 6” Storz-Lok outlet $1,599.00
H440-60NHFS-25BIM 4-way siamese clappered (4) 2.5” BI male inlet x 6” NH female swivel outlet $1,630.00
H440-60NHFS-
25NHFS
4-way siamese clappered (4) 2.5” NH female swivel inlet x 6” NH female swivel outlet $1,884.00
