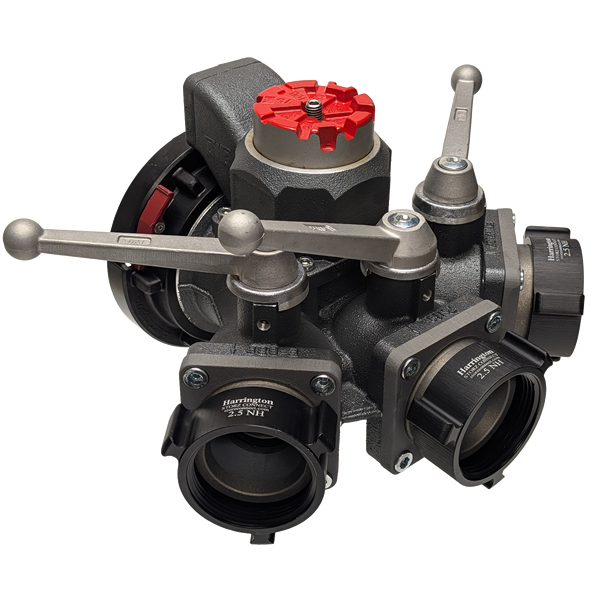

Mid-size, light weight 3 way LDH ball valve feeds three smaller lines from one LDH line or feed one LDH line from up to three smaller lines. The balls are hard anodized with stainless steel tappets for corrosion resistance. Valve includes a field adjustable pressure relief valve. Specify the size of Storz or NST connections.
Dimensions: L: 13.5” W: 13” H: 11”
Weight: 12 lbs
PRINT a product data sheet
DOWNLOAD an Operating Manual with Safety Instructions
Description
| Part Number | Description | Spec Sheet | List |
| H300-40-25NH | 3-Way LDH Wye Ball Valve 4" Storz/Lok x (3) 2.5" NH male Rlf Vlv | DOWNLOAD | $2,575.00 |
| H300-40-25NHFS | 3-Way LDH Wye Ball Valve 4" Storz/Lok x (3) 2.5" NH FS Rlf Vlv | $2,894.00 | |
| H300-40-25ST | 3-Way LDH Wye Ball Valve 4" Storz/Lok x (3) 2.5" Storz Rlf Vlv | $2,763.00 | |
| H300-40-30ST | 3-Way LDH Wye Ball Valve 4" Storz/Lok x (3) 3" Storz Rlf Vlv | $2,744.00 | |
| H300-40NHFS-25NH | 3-Way LDH Wye Ball Valve 4" NH FS R/L x (3) 2.5" NH male Rlf Vlv | $2,519.00 | |
| H300-40NHFS-25NHFS | 3-Way LDH Wye Ball Valve 4" NH FS R/L x (3) 2.5" NH FS Rlf Vlv | $2,838.00 | |
| H300-45NHFS-25NH | 3-Way LDH Wye Ball Valve 4.5" NH FS R/L x (3) 2.5" NH male Rlf Vlv | $2,531.00 | |
| H300-50-25NH | 3-Way LDH Wye Ball Valve 5" Storz/Lok x (3) 2.5" NH male Rlf Vlv | DOWNLOAD | $2,506.00 |
| H300-50-25NH/FTS | 3-Way LDH Wye Ball Valve 5" Storz/Lok (FTS) x (3) 2.5" NH male Rlf Vlv | $2,956.00 | |
| H300-50-25NHFS | 3-Way LDH Wye Ball Valve 5" Storz/Lok x (3) 2.5" NH FS Rlf Vlv | $2,819.00 | |
| H300-50-25NHFS/FTS | 3-Way LDH Wye Ball Valve 5" Storz/Lok (FTS) x (3) 2.5" NH FS Rlf Vlv | $3,269.00 | |
| H300-50-25ST | 3-Way LDH Wye Ball Valve 5" Storz/Lok x (3) 2.5" Storz Rlf Vlv | $2,694.00 | |
| H300-50-30ST | 3-Way LDH Wye Ball Valve 5" Storz/Lok x (3) 3" Storz Rlf Vlv | $2,675.00 | |
| H300-50NHFS-25NH | 3-Way LDH Wye Ball Valve 5" NH FS R/L x (3) 2.5" NH male Rlf Vlv | $2,544.00 | |
| H300-50NHFS-25NHFS | 3-Way LDH Wye Ball Valve 5" NH FS R/L x (3) 2.5" NH FS Rlf Vlv | $2,856.00 | |
| H300-60-25NH | 3-Way LDH Wye Ball Valve 6" Storz/Lok inlet x (3) 2.5" NH male Rlf Vlv | $2,750.00 | |
| H300-60-25NHFS | 3-Way LDH Wye Ball Valve 6" Storz/Lok x (3) 2.5" NH FS Rlf Vlv | $3,194.00 | |
| H300-60-25ST | 3-Way LDH Wye Ball Valve 6" Storz/Lok x (3) 2.5" Storz Rlf Vlv | $3,538.00 | |
| H300-60-30ST | 3-Way LDH Wye Ball Valve 6" Storz/Lok x (3) 3" Storz Rlf Vlv | $3,519.00 | |
| H300-60NHFS-25NH | 3-Way LDH Wye Ball Valve 6" NH FS R/L x (3) 2.5" NH male Rlf Vlv | $2,663.00 | |
| H300-60NHFS-25NHFS | 3-Way LDH Wye Ball Valve 6" NH FS R/L x (3) 2.5" NH FS Rlf Vlv | $2,975.00 |
FTS- Full Time Swivel
