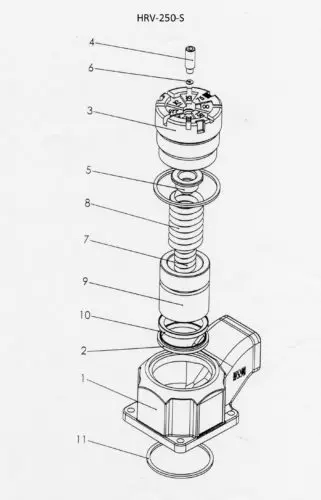

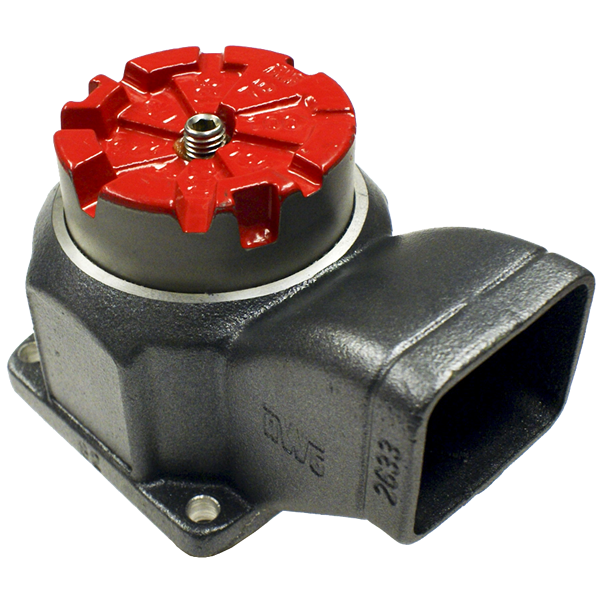

HRV-250-S Relief Valve
Parts Manual

Assembly No.: 30004033
Description: HRV-250-S
VIEW FULL PRODUCT

Pos. Qty. Part No. Description Material US $ Price
**2 1 50337851 Profile Gasket Nitrile $17.00
3 1 30004937 Top Piece Aluminum NA
4 1 00322945 Adjustment Screw 12 x 35 Stainless $8.00
5 1 50289331 Compression Piece Aluminum $44.00
6 1 00227745 Washer 3.2 Stainless $4.00
7 1 40365147 Inner Spring
21.6 x 5.6 x 65.5
Spring Steel $17.00
8 1 40365947 Outer Spring
36 x 7 x 87
Spring Steel $30.00
9 1 50380334 Piston Aluminum NA
**10 1 00032899 O-Ring/Sliding Ring 328 Rubber $35.00
**11 2 00094750 Gasket 75 x 83 x 3 Rubber $13.00 ea.
** 1 HRV-250S-RK Repair Kit: Includes ** $71.00
